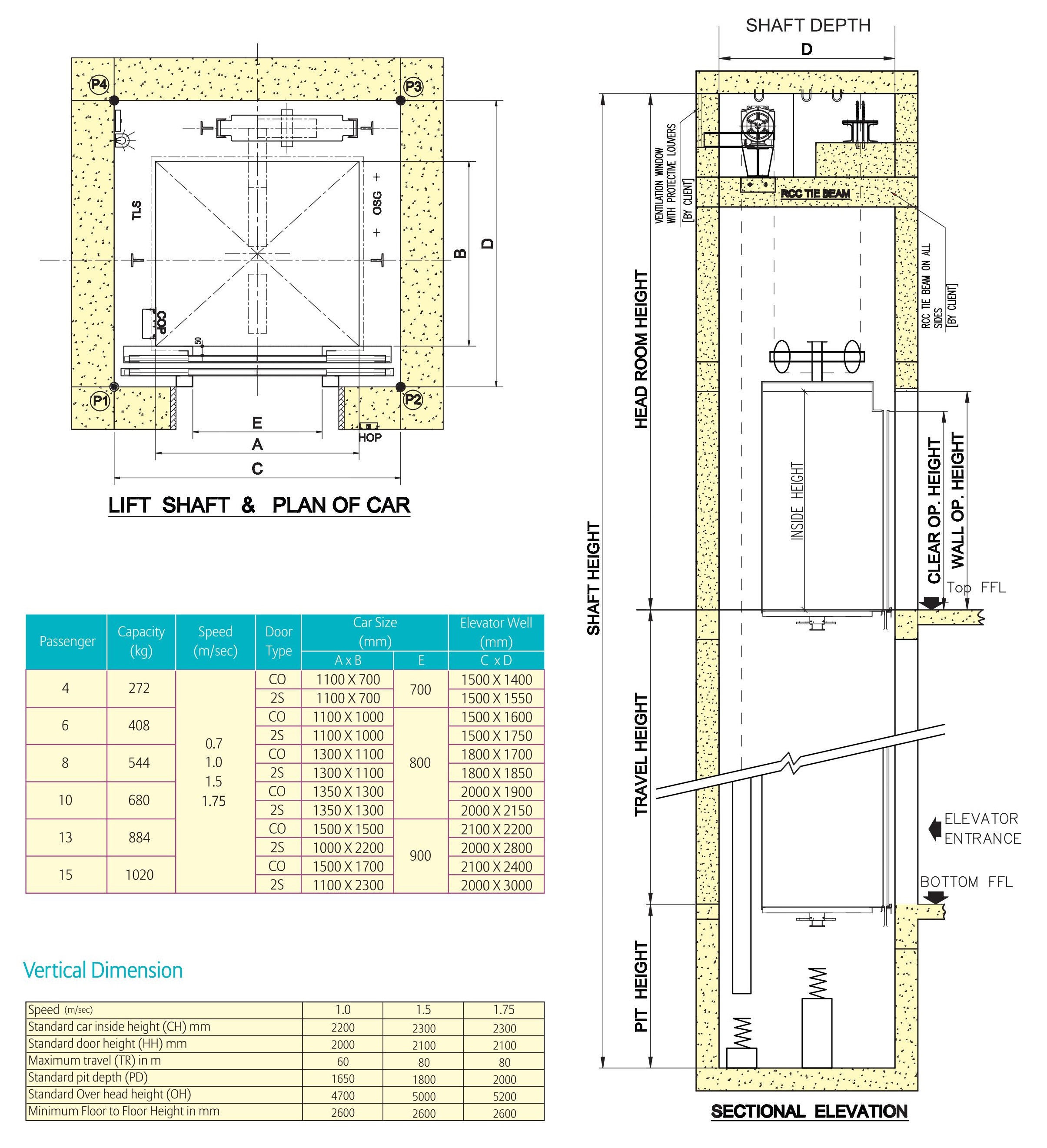

Layout & Basic Specification (MRL)

Layout & Basic Specification (MRL)


Note.
  1. The dimensions in the table are applied to standard specifications only.
  2. Rated capacity is calculated as 68kg per person.
  3. Minimum hoistway dimensions (C and D) shown in the table are after waterproofing of the pit and do not include plumb tolerance.
  4. Lifting hook in headroom required.All walls minimum 150RCC or 230 Brick.(Hoistway front wall 230mm Brick preferred.)
  5. RCC headroom structural slab Minimum thickness150mm
  6. For special requirements our sales person will be happy to work with you in preparation of the drawings.
