Manual Door

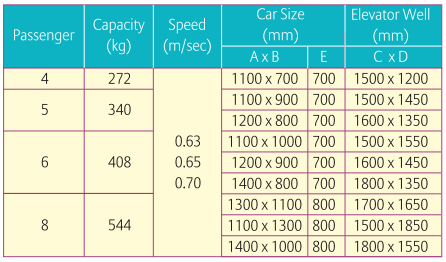

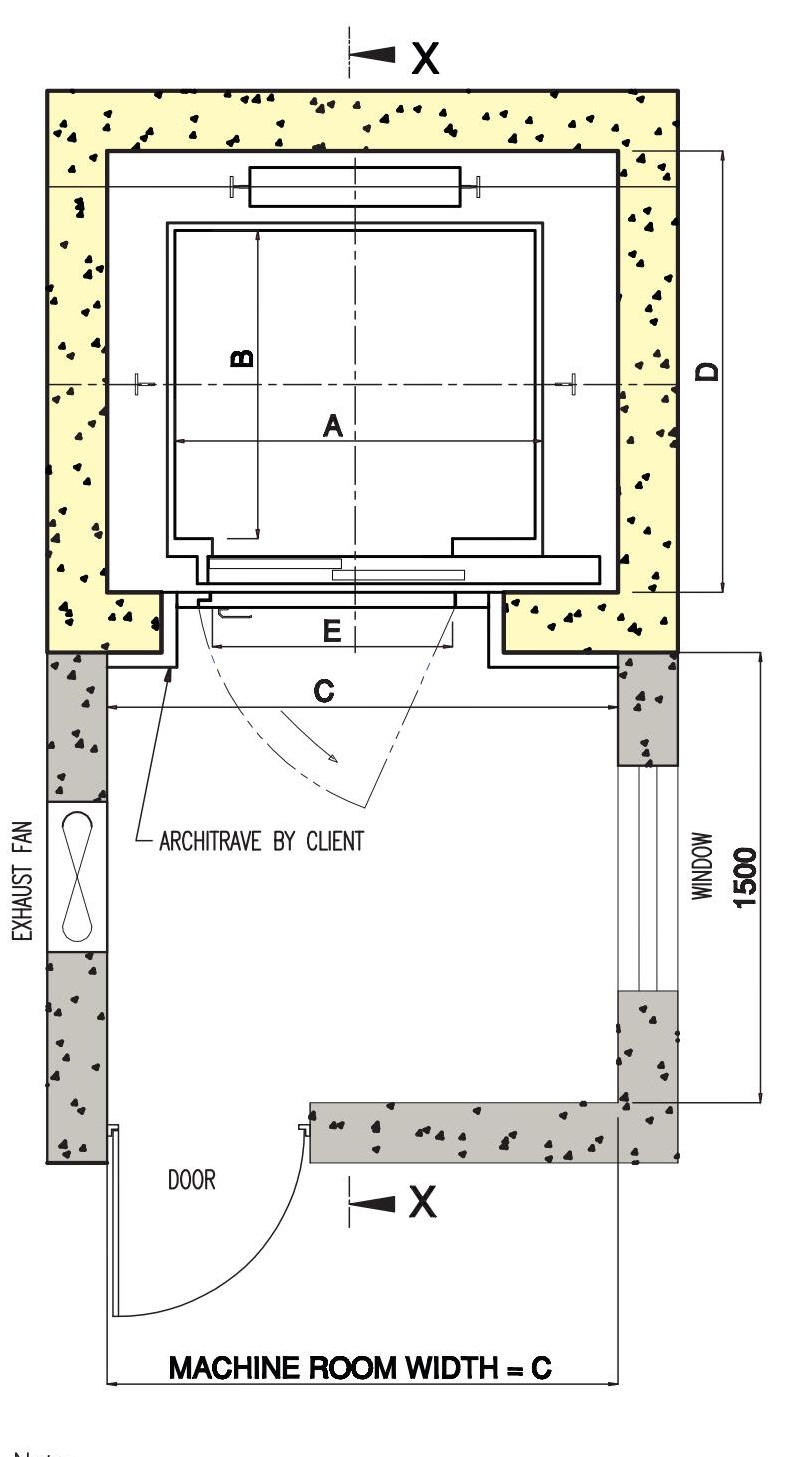

Layout & Basic Specification (Manual Door)
Car Door — Manually operated MS sliding door Landing Door — MS Swinp door.

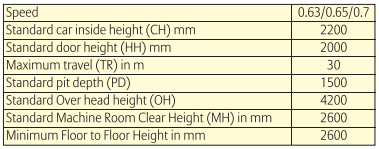

Vertical Dimension
Note.
- The dimensions in the table are applied to standard specifications only.
- Rated capacity is calculated as 68kg per person, as required by the IS code.
- Minimum hoistway dimensions (C and D) shown in the table are after waterproofing of the pit and do not include plumb tolerance.
- Dimensions in the machine room depend upon orientation and number of lift shafts.
- If access to machine room is bya steel ladder instead ofa staircase, provide a trapdoor with lifting hook in the machine room.
- For special requirements, our sales person will be happy toworkwithyou in preparation of the drawings.
Manual Doors
Elevar offer the most economic & optimal design solutions for buildings where there space constraint through its most reliable Manual doors. Solid built yet light weight, Anti corrosive coating for enhanced life, Noiseless & smooth operation.

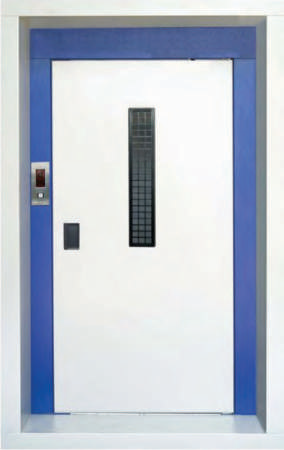

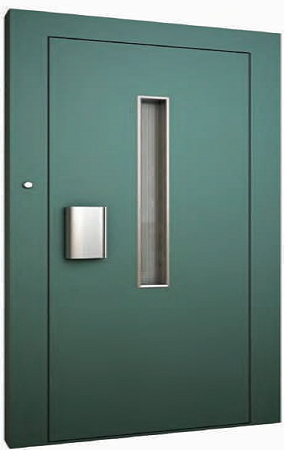

Swing Door

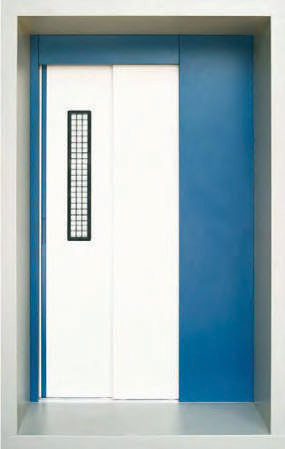

Telescopic Door
