Home Lift & MRL Cantilever
Layout & Basic Specification

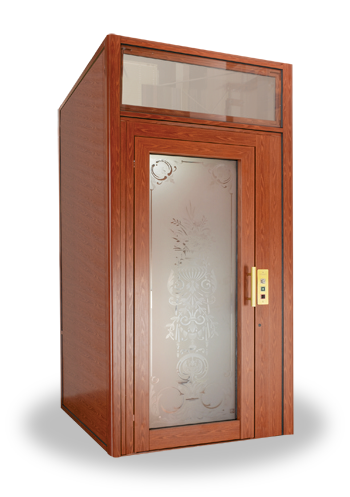

Home Elevator
Elevarhome elevator is fully designed for customers' needs and to meet the highest standards of quality and provide a lifetime of dependable service.
We offer models to fit every budget with a broad range of styles that blend perfectly into any home décor. It delivers a smooth, quiet ride that improves your home accessibility and enhances your quality of life.
The home elevator also facilitate for moving bulky objects from floor-to-floor safer, easier and more convenient.
Since each Home is unique, each Home elevator is custom-made, Please contact our Branch office or sales engineer.
Note.

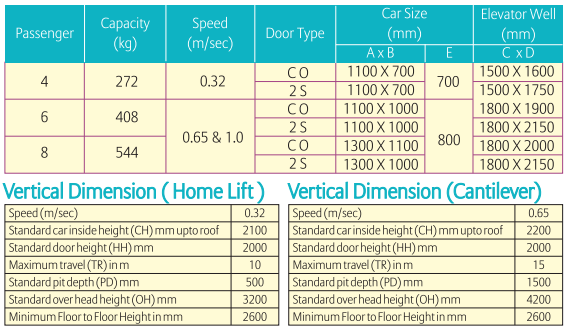

- The dimensions in the table are applied to standard specifications only.
- Rated capacity is calculated as 68kg per person.

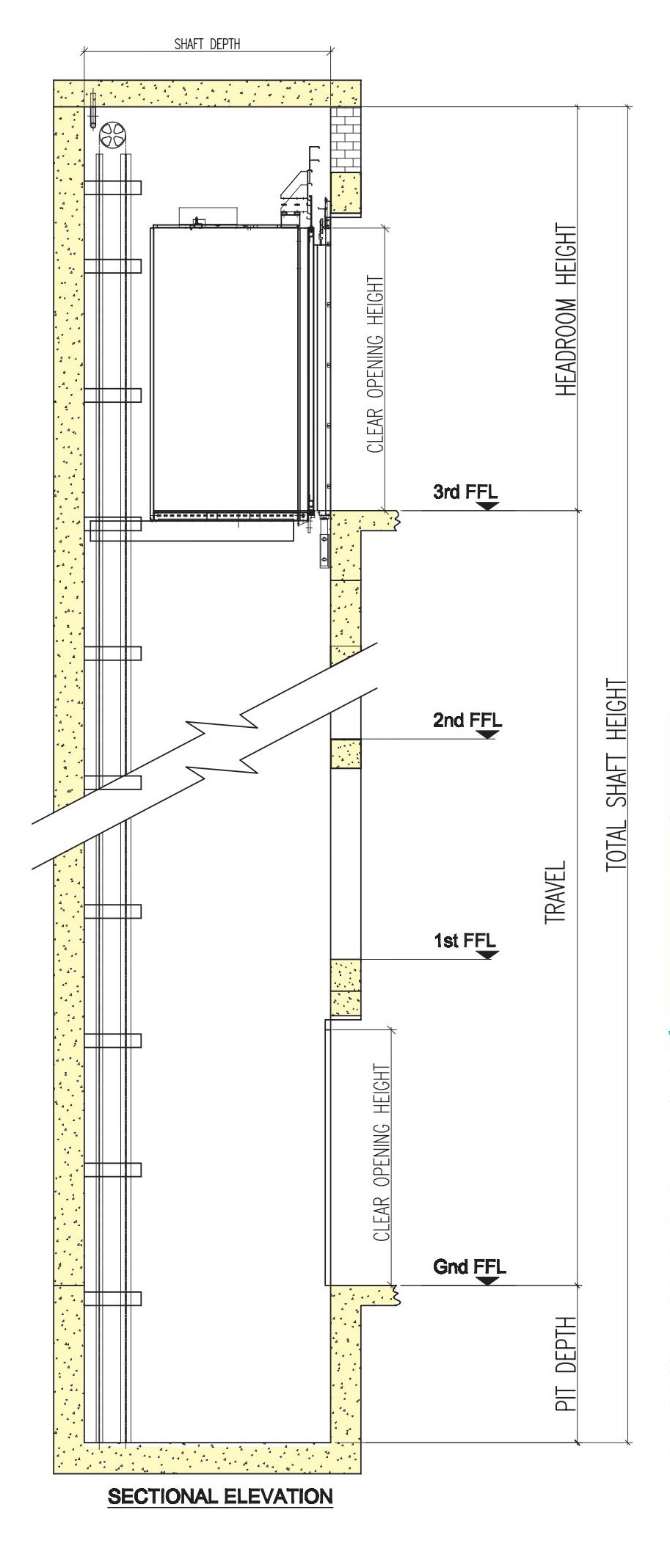

- Minimum hoistway dimensions (C and D) shown in the table are after waterproofing of the pit and do not include plumb tolerance.
- Lifting hook in headroom required.All walls minimum 150RCC or 230 Brick.(Hoistway front wall 230mm Brick preferred.)
- RCC headroom structural slab Minimum thickness 150mm
- For special requirements our sales person will be happy to work with you in preparation of the drawings.
